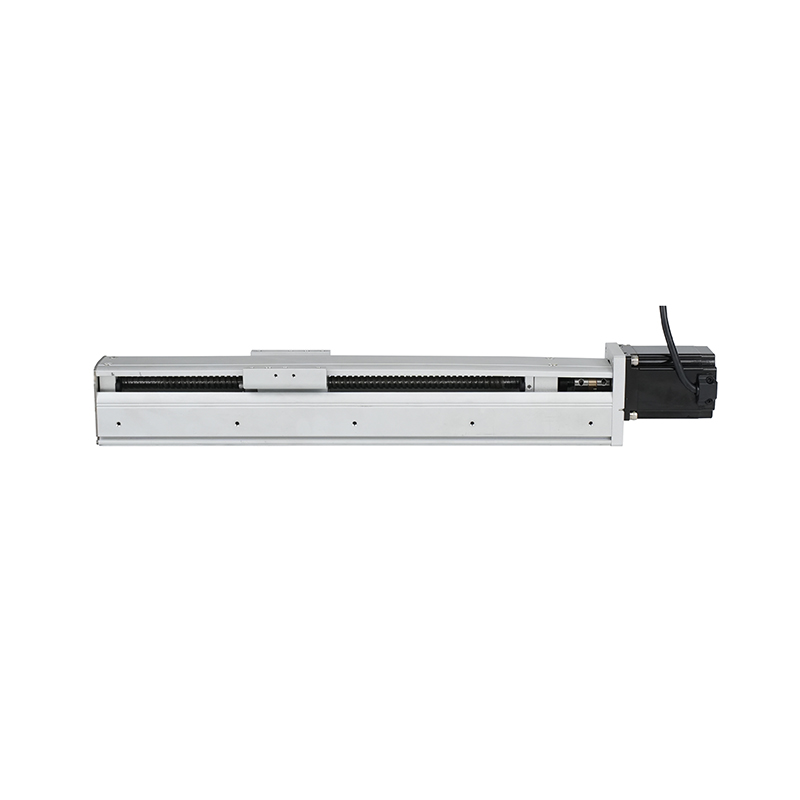

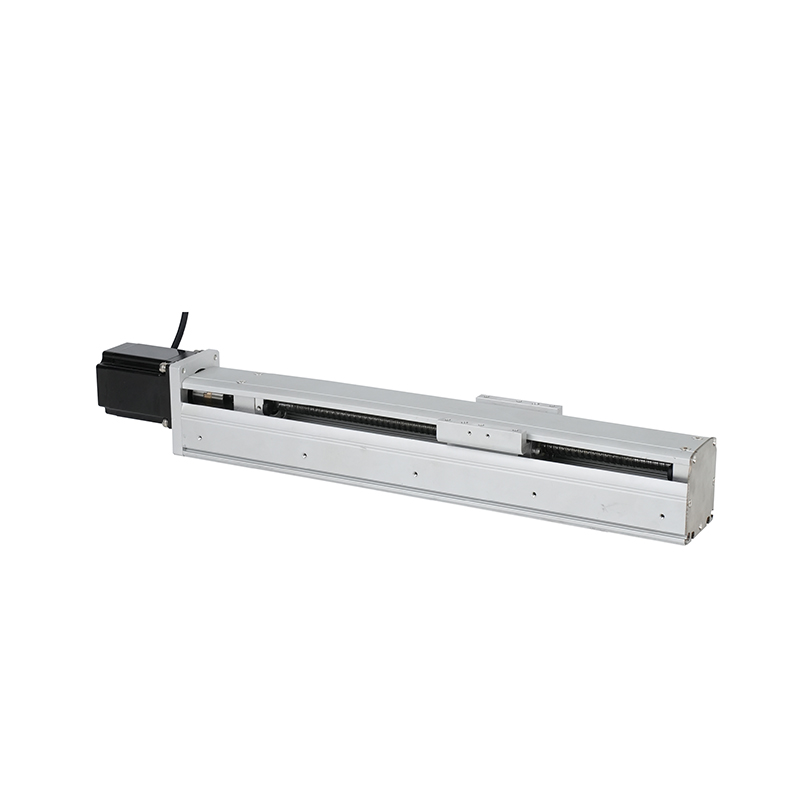

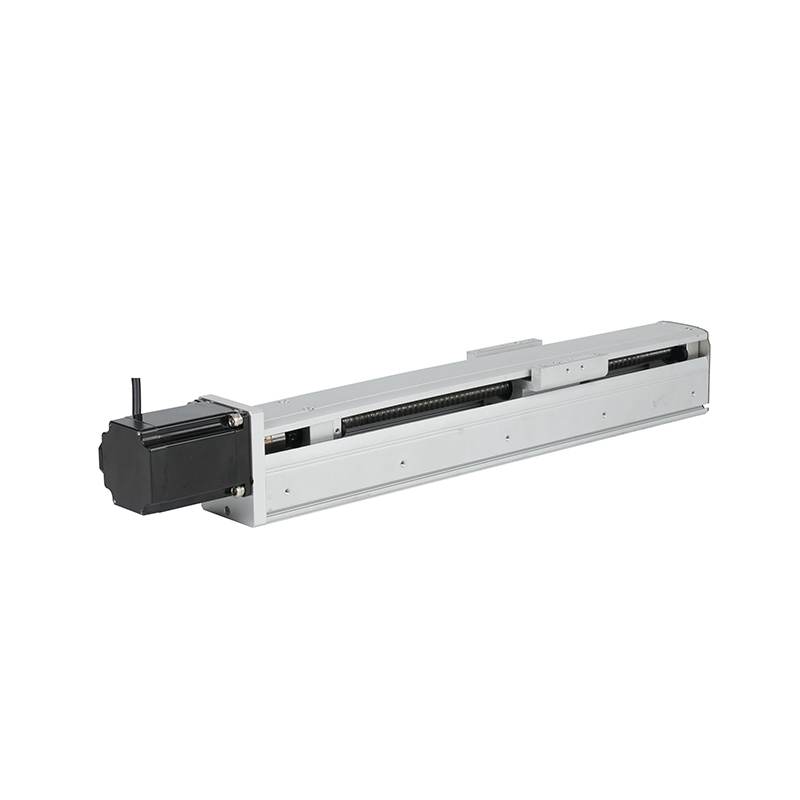

The high & low temperature linear motion module is suitable for special environments such as vacuum, high temperature, low temperature, radiation, salt spray, etc. It adopts an integrated structural design, compact size, high mechanical rigidity, high repeatability positioning accuracy, fast motion speed, and strong load capacity. It has been successfully applied in industries such as aerospace, aging testing, vacuum welding, and new energy equipment manufacturing.
Radiation resistant :
10^6GyAccuracy :
±0.02mmMaximum Load :
Vertical 80kg, horizontal 120kgvacuum degree :
10-7Pa（10-9Torr）Frame Size :
60mm/75mm/95mm/120mmTemperature Range :
-196℃~200℃Environmental Class Lis High & Low temperature resistant linear module description:
The vacuum high and low temperature linear motion module is suitable for special environments such as vacuum, high temperature, low temperature, radiation, salt spray, etc. It adopts an integrated structural design, compact size, high mechanical rigidity, high repeatability positioning accuracy, fast motion speed, and strong load capacity.
The company's products mainly include multiple series of standard products such as wide temperature (-60 ℃~+85 ℃), high temperature (-20 ℃~200 ℃), vacuum (10-5Pa), deep low temperature (-196 ℃~+100 ℃), etc. These products are widely used in aerospace, aging testing, vacuum welding, new energy equipment manufacturing, biomedicine and other fields, providing strong support for technological innovation and industrial development. Zhonggu Weike (Shenzhen) Power Technology Co., Ltd. strictly controls the selection of raw materials and the implementation of solutions with a professional team.
We provide full process technical support and military grade quality assurance. We look forward to your inspection of our quality and service.
Environmental Class List
| Environmental Class List | ||||
| Temperature Level | Symbol | Temperature Range (°C) | Maximum Allowable Temperature of Motor Casing (°C) | Vacuum Degree (Pa) |
| Wide Temperature | NTL2 | -40 ~ +85 | +115 | / |
| NTL3 | -60 ~ +85 | +115 | / | |
| Vacuum High Temperature | VMT1 | -20 ~ +200 | +200 | 10⁻³ |
| VMT2 | -20 ~ +150 | +150 | 10⁻³ | |
| VHT1 | -20 ~ +200 | +200 | 10⁻⁵ | |
| VHT2 | -20 ~ +160 | +160 | 10⁻⁵ | |
| Cryogenic | VTL3 | -60 ~ +100 | +130 | 10⁻¹ |
| NTL4 | -80 ~ +85 | +115 | / | |
| SLT | -196 ~ +40 | +100 | / | |
Application:
High and low temperature modules are widely used in industries such as aerospace, aging testing, vacuum welding, and new energy equipment manufacturing.
High & low temperature resistant Linear module Dimensions:

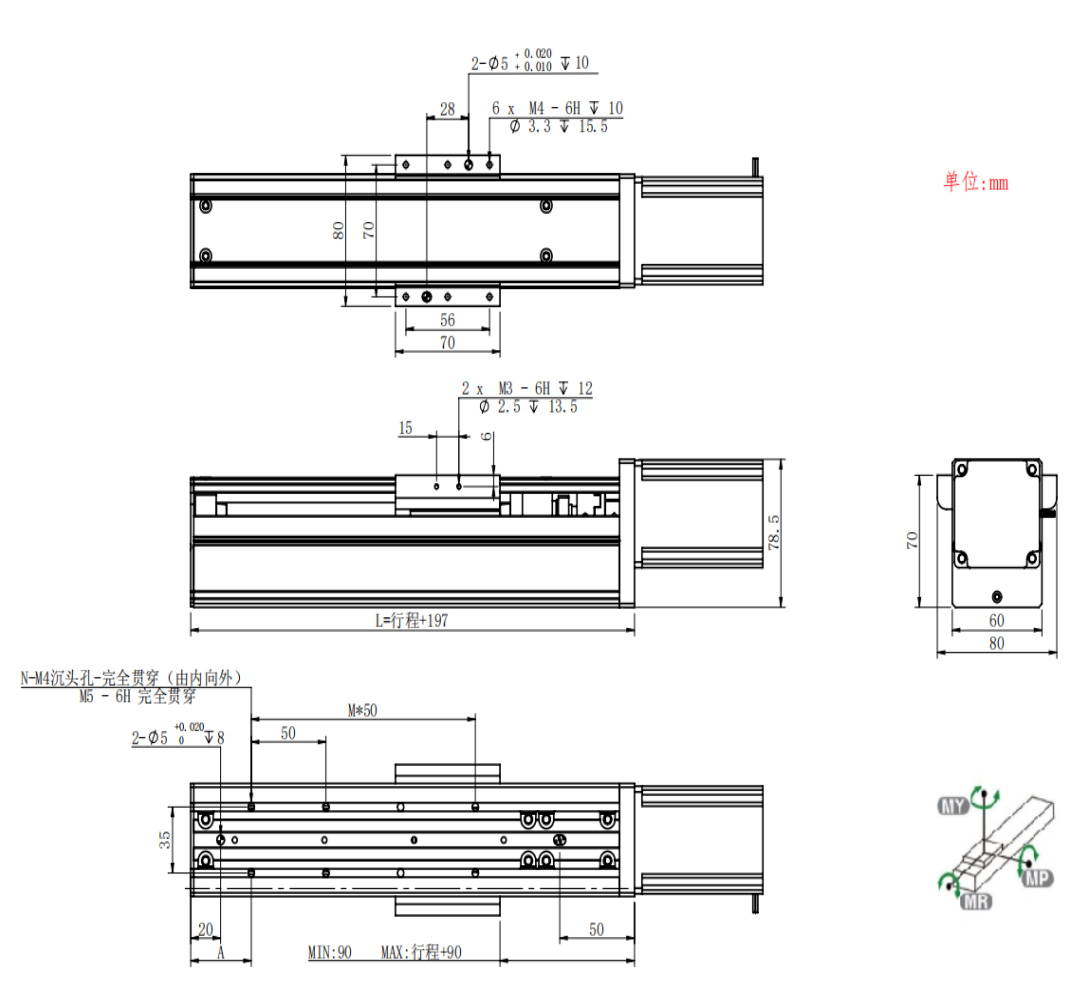

60mm Linear Modules Dimensions：

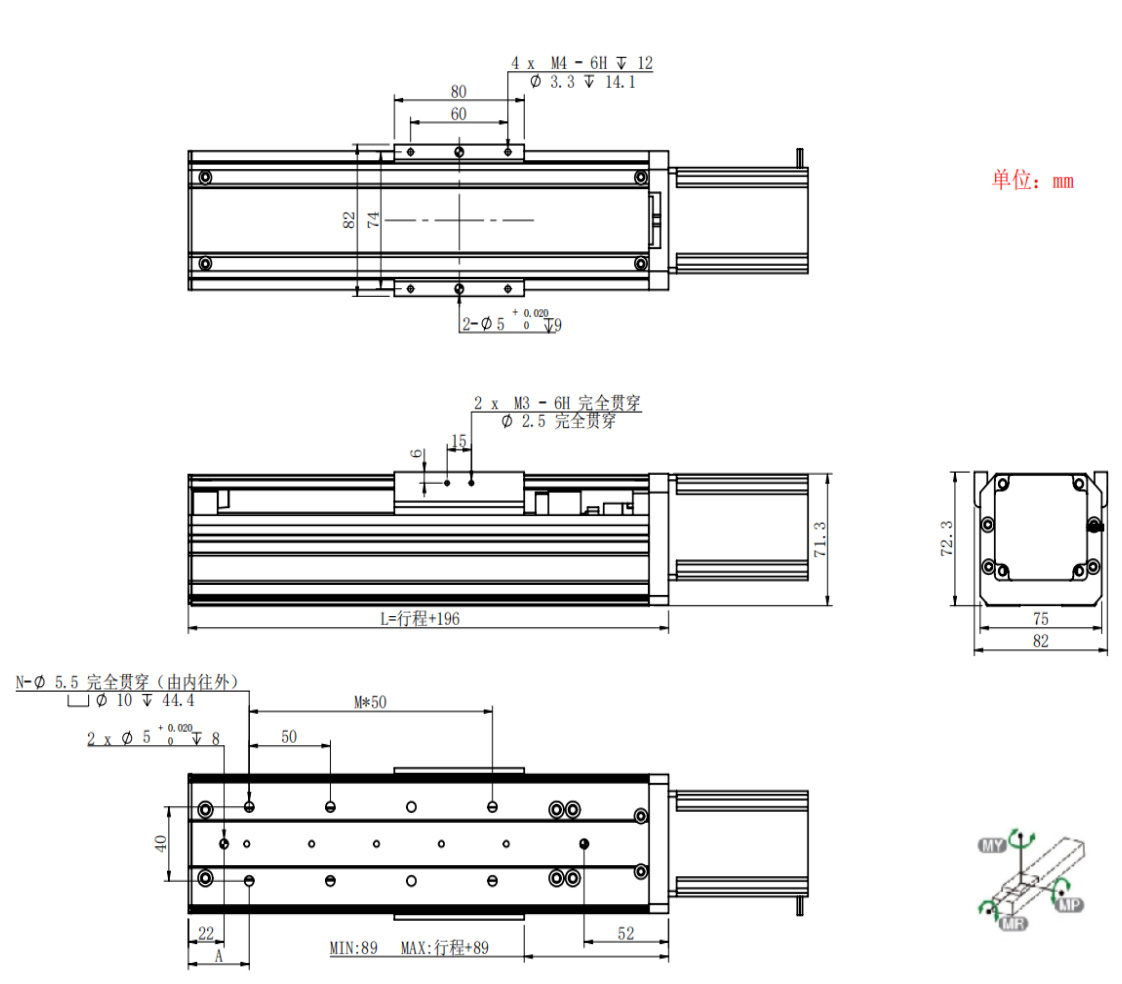

75mm Linear Modules Dimensions：

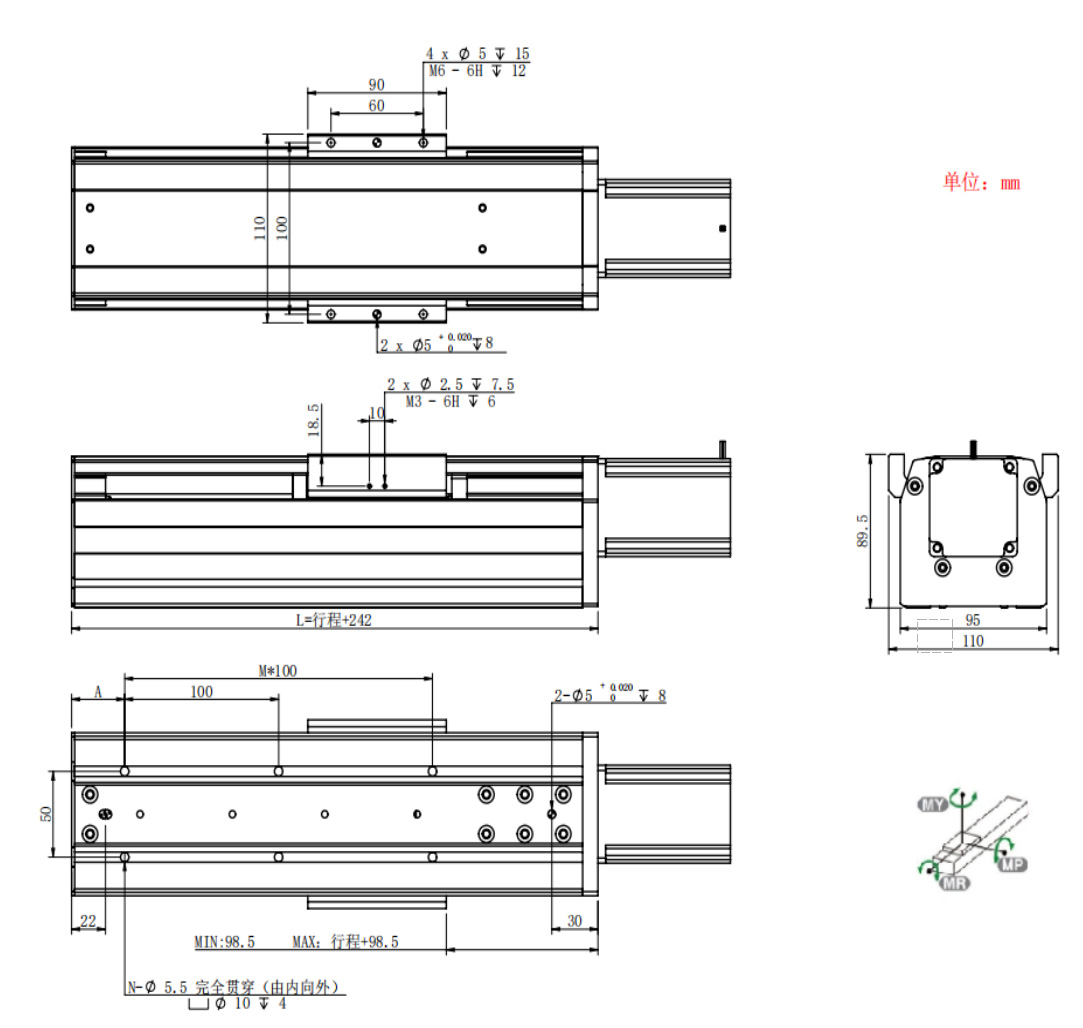

95mm Linear Modules Dimensions：

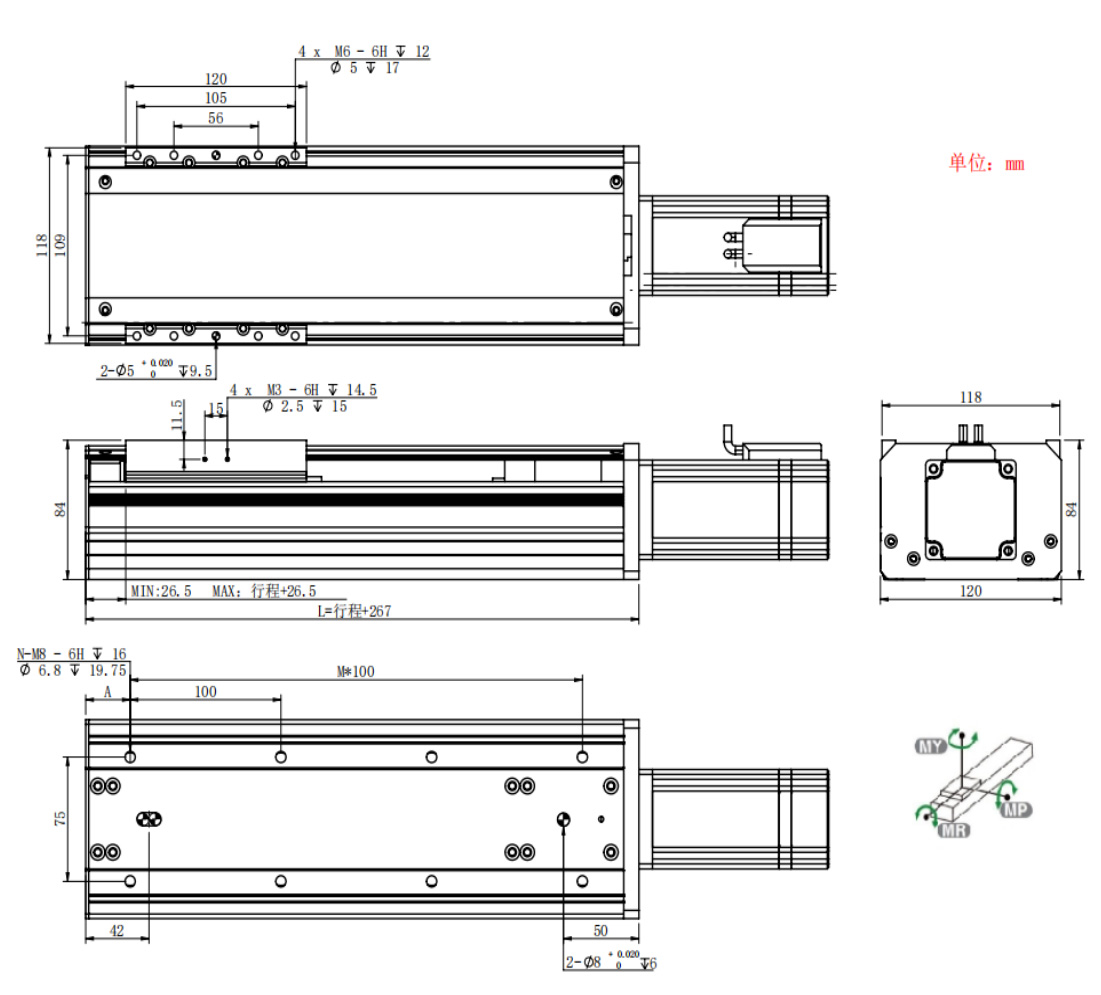

120mm Linear Modules Dimensions：
